JET 708404
The JBOS-5 benchtop spindle sander has a 1/2 hp motor and a large 14-1/2 in tilting table. A heavy-duty worm gear system provides one-inch oscillating action, which prolongs sleeve life and helps prevent burnishing of the workpiece. Four inserts are provided and 5 spindles with sanding sleeves.
| Voltage Rating | : | 115 V |
| Current Rating | : | 3 A |
| HP Rating | : | 0.5 hp |
| Belt Table Tilt Angle | : | 45 deg |
| Disc Table Length | : | 14-1/2 in |
| Disc Table Width | : | 14-1/2 in |
| Includes | : | 1/4, 1/2, 5/8, 1-1/2, 2 in Spindle Assemblies with 100 Grit Paper |
- 1 in oscillating action reduces friction heat to protect wood and prolong sleeve life
- Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance
- Oscillation gears run in a sealed lubricated box to prolong their life and durability
- Table tilts to 45 deg to accommodate bevel sanding projects
- Removable ON/OFF safety switch prevents accidental start-up
- Powerful 1/2 hp induction motor easily handles the toughest sanding projects
- Built-in 2 in dust port keeps dust and debris out of the air
- Spindles have threaded ends for quick, easy changes
- Four table inserts are provided (3/4 in and 1 in Oblong, 3/4 in and 1 in round) to prevent dust and debris from falling into the motor and help protect operator

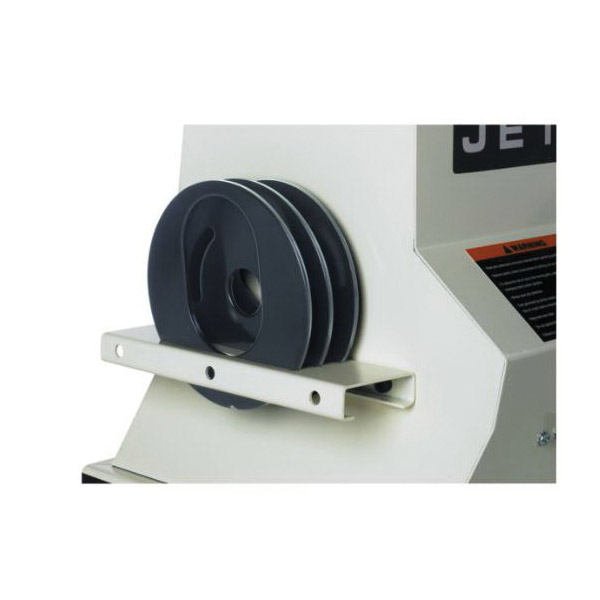

- Built-in storage racks keep spindles and table inserts handy
